With the development of the automobile industry,in recent years, the fuel-efficient and lightweight is becomingthe issues that have attracted the attention of automobile manufacturers. In order to cope with automobile manufacturers, some ...
Details >
Electric field and intelligent process, is the traditional European auto industry and auto parts industry brings the disruptive innovation, the economic impact of the scope of how -- when a industry development is large enough to be involve...
Details >
Dear staff, Everybody is good! The Year of the Tiger Spring Festival is just around the corner. I would like to extend my best wishes to you all. 2021 is a year of complexity and opportunity. We stayed calm, responded positively, withs...
Details >
What is brake drum cracking For vehicles with drum brake structure, especially heavy trucks, trailers and engineering vehicles, under the conditions of frequent braking, large braking force and water cooling, long-term use causes the brake ...
Details >
In the field of auto parts, the rear axle is an extremely important component of the automobile chassis, which needs to bear the force in all directions during the driving process. Therefore, the stiffness, strength and fatigue life of auto...
Details >
Inspection and repair of front and rear axle steering knuckle 1.Use magnetic flaw detection method to check whether there are cracks in the shaft journal and upper and lower ears of the steering knuckle of the front and rear axle of the au
Details >
During the use of the vehicle, the front axle is damaged due to long-term force on the front axle. In the process of vehicle maintenance, we must attach great importance to the research and analysis of the damage of the front axle, improve ...
Details >
[troubleshooting of damage and deformation of automobile front axle]When the bending deformation of the front axle is detected, it shall be corrected by cold pressing on the press. If the cold calibration fails to achieve the purpose, it ca...
Details >
The damage and deformation of the automobile front axle shall be inspected with the special angle ruler inspection method. The test bar shall be inserted into the kingpin hole, and a special sizing block shall be placed on each of the two l...
Details >
Share with you the leading enterprises related to automobile axle (automobile axle includes: supporting parts, product development, manufacturing, sales, test and inspection enterprises, etc.) 1.Qingte Group Co. LTD Adhere to the introduct...
Details >![[Reasons for damage and deformation of automobile front axle]](https://chinaaxle.net/uploadfiles/pictures/news/20210305092049_1052.png "[Reasons for damage and deformation of automobile front axle]")
Cause analysis of front axle damage:The vertical and lateral reaction forces generate bending moments in the vertical plane of the front axle, causing the middle part of the front axle and the kingpin hole in the vertical direction of bendi...
Details >
Technical requirements for the front axle: the front axle of the car is connected by the suspension frame, and the wheels are installed at both ends.Because the front wheels are subjected to vertical forces and vertical reactions and the be...
Details >
The front axle of the car, also known as the front axle, is used to install the front wheel, support the weight of the front of the car, and connect with the frame with the front suspension.The front axle assembly is composed of the front a...
Details >
1. Axle manufacturer 1. In terms of cost reduction, on the basis of Auman's batch use of 1853 lightweight front axle, we communicated with Shanxi Universiade this month, and then switched in batches in Shanxi Universiade; The 2.4-ton M4 lig
Details >
On July 12, China Auto News held the press conference of top 100 auto parts enterprises in the world and top 100 auto parts enterprises in China in 2021. With the sales volume of 4.48 billion yuan in 2020, Zhucheng Yihe axle Co., Ltd. ranks...
Details >
Under the market economy, the competition is becoming more and more fierce, and more and more enterprises around go bankrupt. Under the leadership of general manager Chen, Yihe vehicle bridge has survived to today. It has developed from a
Details >
Is it difficult to build a truck in China? It's not hard to. Because there is a good nanny in China's truck industry - Golden Power Chain. Golden power chain refers to the combination of Weichai engine + Fastet gearbox + Yihe axle power cha...
Details >
In order to commemorate the 100th anniversary of the founding of the Communist Party of China, strengthen the construction of Party organizations and Party members of Yihe axle company, and actively create a good atmosphere of patriotism an...
Details >
1. How to hold the cost analysis meeting. The cost analysis will be conducted in turn in the branch plant, starting from the agricultural machinery axle branch plant. The directors of each professional branch are required to learn the com
Details >
As a professional light vehicle front axle manufacturer, Zhucheng Yihe axle Co., Ltd. always pays attention to the automobile market. According to accurate information, the Ministry of ecological environment, the Ministry of industry and in...
Details >

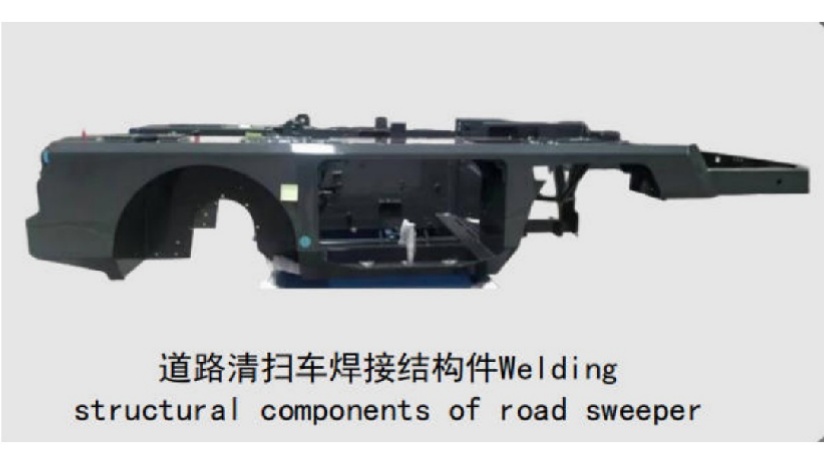

Welded structural parts for chassis of road sweeper
Welded structural parts for chassis of road sweeper The welded structural chassis of pure electric road sweeper is specially designed for cleaning urban community streets and narrow streets, and is widely used in small municipal sanitation vehicles and small electric sweeper.
3.2 ton front axle
3.2 ton front axle Material:40Cr
Tonnage:3.2T
Distance between kingpins:1540
Distance between leaf springs:760
Kingpin diameter:φ38
Kingpin Inclination:6°
Drop:70+35
3.6 ton front axle
3.6 ton front axle Material:45#
Tonnage:3.6T
Distance between kingpins:1638
Distance between leaf springs:790
Kingpin diameter:φ28
Kingpin Inclination:7°
Drop:85
4.3 ton truck steering axle
4.3 ton truck steering axle Material:45
Tonnage:4.3T
Distance between kingpins:1727
Distance between leaf springs:851~900
Kingpin diameter:φ38
Kingpin Inclination:7°
Drop:74
Brake specification:Φ400
Rim mounting face distance:2204~2268
5 ton truck steering axle
5 ton truck steering axle Material:42CrMo
Tonnage:4.5~6.1T
Distance between kingpins:1820
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:6.5°
Drop:100
Brake specification:Φ400
Rim mounting face distance:2219~2368
2.6 ton front axle
2.6 ton front axle Material:45#
Tonnage:2.6T
Distance between kingpins:1592
Distance between leaf springs:805
Kingpin diameter:φ35
Kingpin Inclination:8°
Drop:70+35
2.1 ton front axle
2.1 ton front axle Material:40Cr
Tonnage:2.1T
Distance between kingpins:1249
Distance between leaf springs:680
Kingpin diameter:φ30
Kingpin Inclination:7.5°
Drop:60+5
5.5 ton truck steering axle
5.5 ton truck steering axle Material:42CrMo
Tonnage:7.5T
Distance between kingpins:1767
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:3°
Drop:89
Brake specification:Φ420
Rim mounting face distance:2343~2365
1.5 ton front axle
1.5 ton front axle Material:45#
Tonnage:1.5T
Distance between kingpins:1354
Distance between leaf springs:710
Kingpin diameter:φ25
Kingpin Inclination:7.5°
Drop:64+8
2.8 ton front axle
2.8 ton front axle Material:40Cr
Tonnage:2.85T
Distance between kingpins:1530
Distance between leaf springs:800
Kingpin diameter:φ32
Kingpin Inclination:8°
Drop:φ14
4.3 ton front axle
4.3 ton front axle Material:45#
Tonnage:4.3T
Distance between kingpins:1727
Distance between leaf springs:851
Kingpin diameter:φ42
Kingpin Inclination:6°
Drop:80
2.5 ton front axle
2.5 ton front axle Material:45#
Tonnage:2.5T
Distance between kingpins:1472.4
Distance between leaf springs:760
Kingpin diameter:φ32
Kingpin Inclination:8°
Drop:70+34
