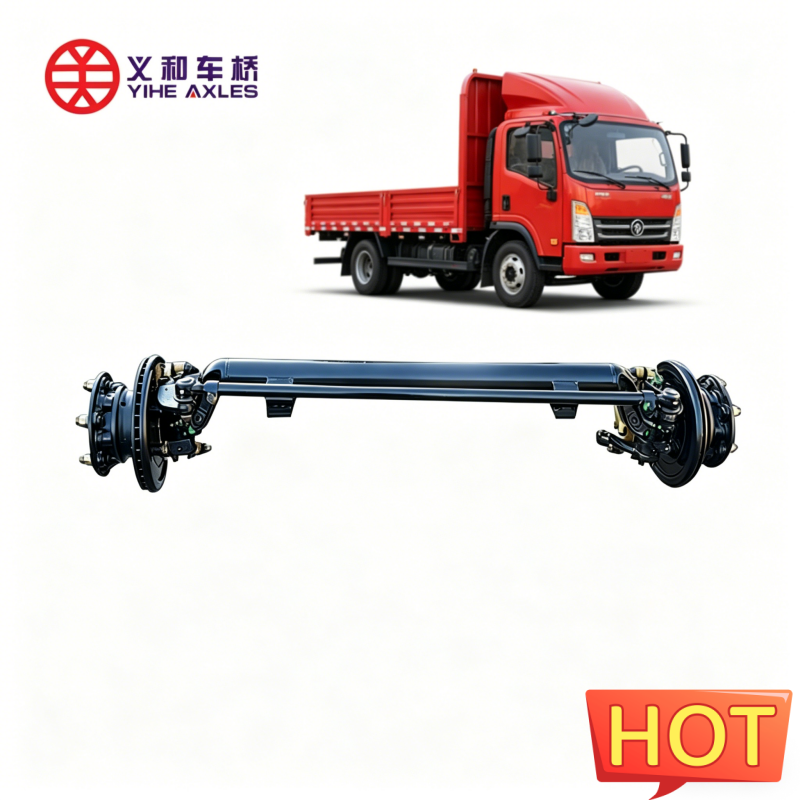

2 ton truck steering axle Material:45
Tonnage:2T
Distance between kingpins:1359
Distance between leaf springs:760
Kingpin diameter:φ30
Kingpin Inclination:7.5°
Drop:64
Brake specification:Φ280~320
Rim mounting face distance:1620~1880

4.3 ton truck steering axle Material:45
Tonnage:4.3T
Distance between kingpins:1727
Distance between leaf springs:851~900
Kingpin diameter:φ38
Kingpin Inclination:7°
Drop:74
Brake specification:Φ400
Rim mounting face distance:2204~2268

Other welded structural parts of lifting machine Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.

Truck Seat-copilot

2.2 ton I-BEAM Material:45#
Tonnage:2.2T
Distance between kingpins:1359
Distance between leaf springs:750
Kingpin diameter:φ30
Kingpin Inclination:7.5°
Drop:64+5

7.5 ton truck steering axle Material:42CrMo
Tonnage:7.5T
Distance between kingpins:1767
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:3°
Drop:89
Brake specification:Φ420
Rim mounting face distance:2343~2365

5 ton I-Beam Material:42CrMo
Tonnage:4.5~6.1T
Distance between kingpins:1820
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:6.5°
Drop:φ14

3 ton truck steering axle Material:40Cr
Tonnage:3T
Distance between kingpins:1530
Distance between leaf springs:800
Kingpin diameter:φ32
Kingpin Inclination:8°
Drop:95
Brake specification:Φ320~360
Rim mounting face distance:1893~2224

Truck Seat-Driver

6.5 ton I-Beam front axle Material:HRC23-30
Tonnage:6.5T
Distance between kingpins:1773.3
Distance between leaf springs:830
Kingpin diameter:φ52
Kingpin Inclination:7°
Drop:92.3

Welded structural parts of cotton picker chassis The front axle closed side by structure ; The rear axle fixed seat with casting structure.

7.5 ton I-BEAM Material:42CrMo
Tonnage:7.5T
Distance between kingpins:1767
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:3°
Drop:89
