About Us
- 500Sets
Equipments
- 1,200,000Sets
Annual Production Capacity
- 5,000m2
Technical Center
VIEW MORE
Products
- I-Beam Axle
- Welded Structural Parts
- Truck Axle & Truck Seat
-
-
-
1.5 ton I-BEAM
Material:45#
Rated load:1.5T
Distance between kingpins:1354
Distance between leaf springs:710
Kingpin diameter:φ25
Kingpin Inclination:7.5°
Drop:64+8
-
-
-
-
2.2 ton I-BEAM
Material:45#
Tonnage:2.2T
Distance between kingpins:1359
Distance between leaf springs:750
Kingpin diameter:φ30
Kingpin Inclination:7.5°
Drop:64+5
-
-
-
-
2.5 ton I-BEAM
Material:45#
Tonnage:2.5T
Distance between kingpins:1472.4
Distance between leaf springs:760
Kingpin diameter:φ32
Kingpin Inclination:8°
Drop:70+34
-
-
-
-
7.5 ton I-BEAM
Material:42CrMo
Tonnage:7.5T
Distance between kingpins:1767
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:3°
Drop:89
-
-
-
-
Welded structural parts of wheat harvester chassis
The front axle and the frame adopt an integrated structure, and the header can adopt single cylinder or double cylinder.
-
-
-
-
Welded structural parts of corn harvester chassis
The upper frame and the front axle have two structures.（Welding in one piece or assembling separately）
-
-
-
-
Welded structural parts of cotton picker chassis
The front axle closed side by structure ; The rear axle fixed seat with casting structure.
-
-
-
-
Welded structural parts of lifting machine chassis
Turn to use welding body for connection，The steering shaft sleeve is made of special materials，Durable wear resistance，The safety factor is improved.
-
-
-
-
1 ton truck steering axle
Material:45
Tonnage:1T
Distance between kingpins:1165~1360
Distance between leaf springs:650~780
Kingpin diameter:φ25
Kingpin Inclination:7.5°
Drop:23~60
Brake specification:Φ280~320
Rim mounting face distance:1215~1600
-
-
-
-
3.5 ton truck steering axle
Material:40Cr
Tonnage:3.5 T
Distance between kingpins:1630
Distance between leaf springs:800
Kingpin diameter:φ32
Kingpin Inclination:8°
Drop:95
Brake specification:Φ320~360
Rim mounting face distance:1900~2224
-
-
-
-
4 ton truck steering axle
Material:45
Tonnage:4 T
Distance between kingpins:1727
Distance between leaf springs:851~890
Kingpin diameter:φ38
Kingpin Inclination:7°
Drop:74
Brake specification:Φ400
Rim mounting face distance:2204
-
-
-
-
2.2 ton truck axle
Material : 42CrMo
Rated load : 2.2T
Distance between kingpins:1490
Distance between leaf springs:850
Kingpin diameter:φ35
Kingpin Inclination:7°
Drop:89
Brake specification:Φ250*45
Rim mounting face distance:1980
-
Cases
-
-
Lingong Group Jinan Heavy Machinery uses welded structural parts of the lifting machine chassis.
Customer Name：Lingong Group Jinan Heavy Machinery Customer Products：Aerial Work Platforms Welded structural parts of l...
VIEW MORE
-
-
Foton uses Yihe axles products
The largest axle manufacturer in China, an excellent supplier of China's mainstream automobile manufacturers, and domest...
VIEW MORE
-
-
Ollin uses truck steering axle
Customer Name：FOTON Customer Products：OLLIN Application products：truck steering axle. The largest axle manufacturer i...
VIEW MORE
-
-
Boshiran uses Welded structural parts of cotton picker chassis
Customer Name：Boshiran Customer Products：cotton picker Application products：Welded structural parts of cotton picker ...
VIEW MORE
-
-
Lovol Arbos uses Welded structural parts of corn harvester chassis
From 1994, we began to produce welded structural parts of corn harvester chassis, serving the largest harvester manufact...
VIEW MORE
Why choose us
-
-
R&D Capability
In 2011, Yihe was approved by the provincial science and Technology Department of Shandong Province to construct " Shandong Province Vehicle Axles Engineering Research center ". This engineering center has 7 professional engineering centers and more than 190 engineers.
-
-
Mass Production
Introduce more than 500 sets of advanced, precise and top equipments，has three high efficient welding assembly lines, 4 light duty truck axle assembly lines, 2 medium and heavy duty truck axle assembly line, and 2 high level heavy truck axle assembly lines.
-
-
Powder Coating Line
Invested 20 million to build a powder spraying line, which enhanced the product's appearance weather resistance, brightness and hardness, and the salt spray test reached 1,000 hours. Adhesion reaches the highest standard of level zero.
-
-
High Quality

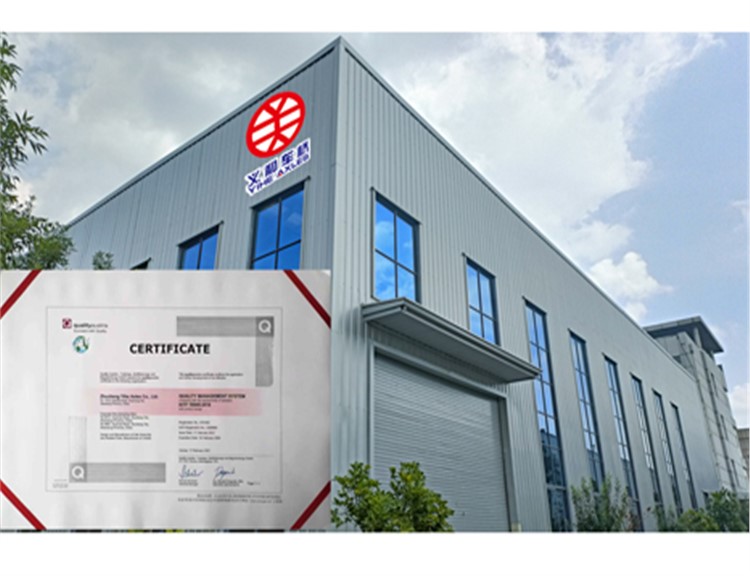

Established the Axle Parts Inspection Department to fully monitor the quality of raw materials 3 automated welding production lines with high degree of automation and guaranteed quality. The company has passed IATF 16949 quality system certification, EU TUV certification, CWB certification.
